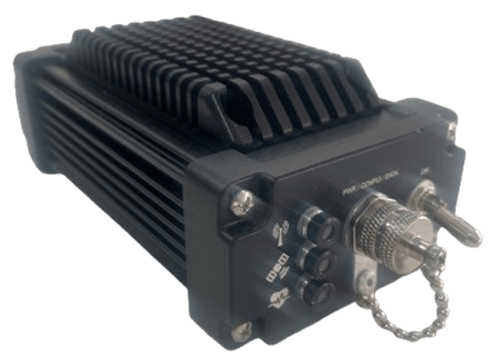

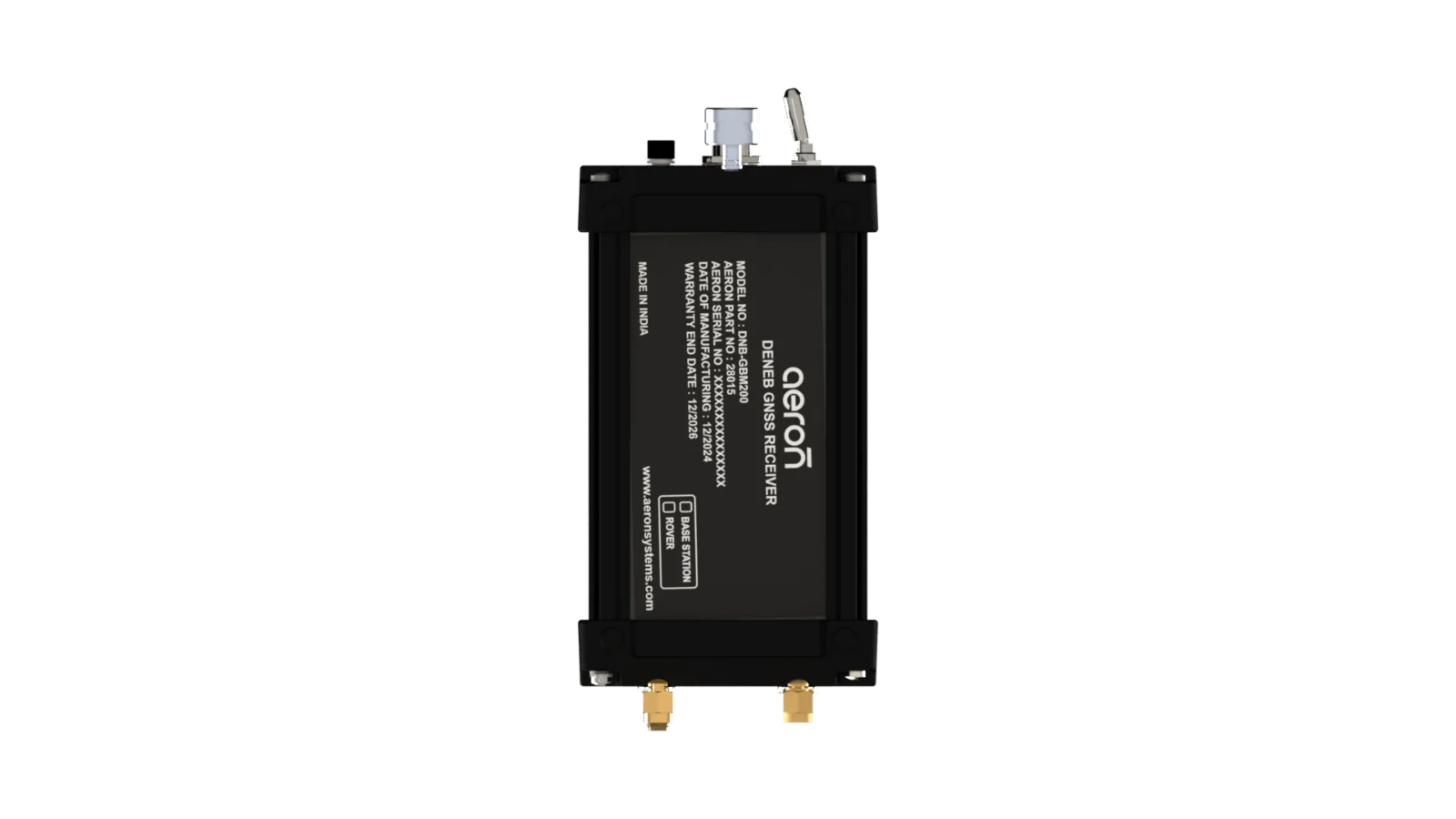

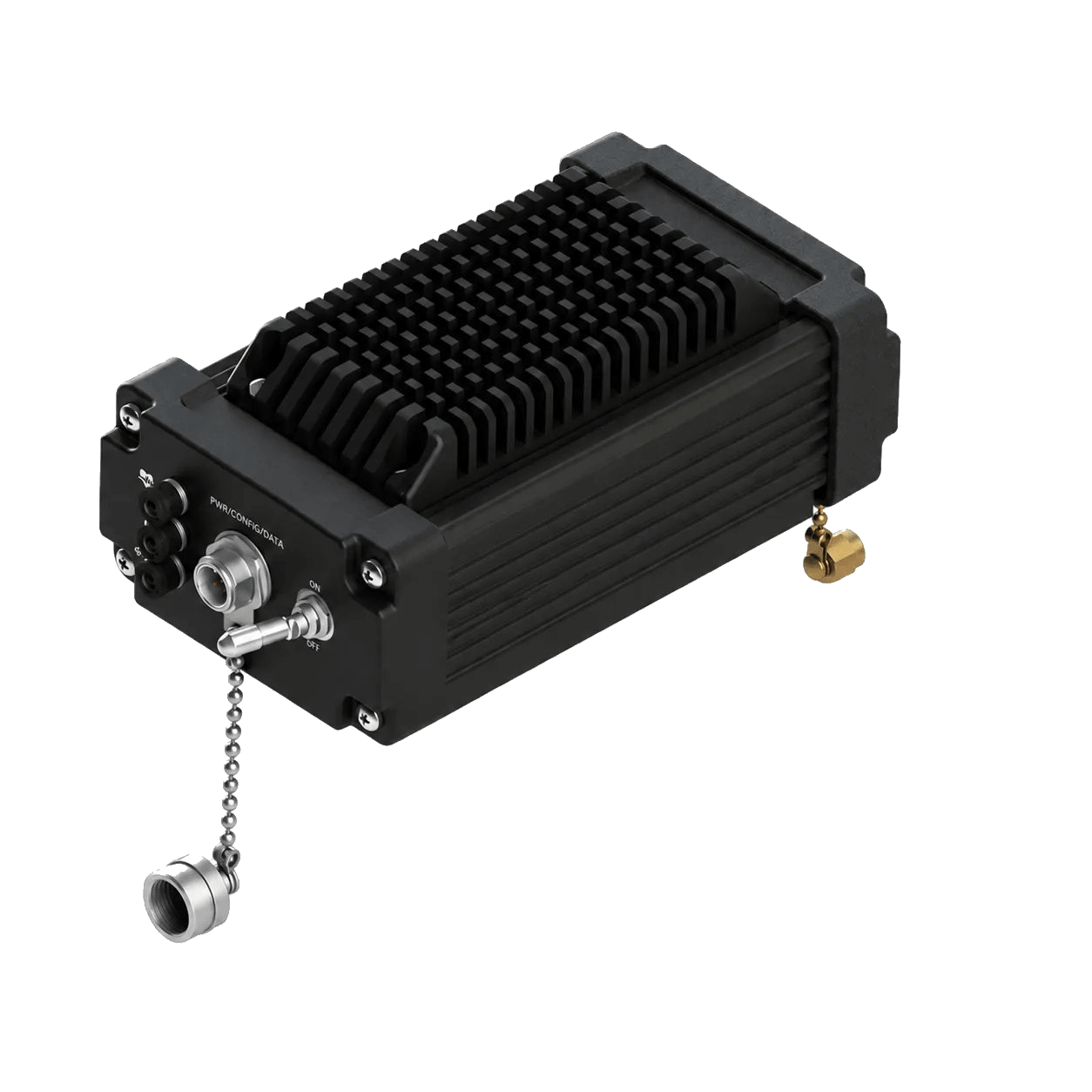

DENEB DNB-GBM200

Octantis 2 INS-GNSS

Aeron's Octantis 2 INS is a rugged MEMS-based navigation system that provides reliable position and navigation information in intermittent GNSS conditions. Octantis 2 is a field-proven product that has been in service for the last 10 years and is supported for long program life. The Octantis 2 INS-GNSS system delivers centimeter-level RTK positioning with an integrated multi-constellation and multi-frequency (L1, L2, and L5) GNSS chipset.

Octantis 2 NS7300D-01A is designed for land and unmanned airborne applications. It has undergone a range of qualification tests covering an array of use cases and associated environmental factors. Octantis 2 INS-GPS is also part of our land navigation suite offering, delivering best-in-class GPS-denied performance with odometer aiding over CAN or pulse input. It features RS232, RS422, Ethernet, and CAN interfaces, all isolated for interfacing with vehicle-mounted displays, controllers, computers, and autopilot systems.

Aldebaran FOG INS-GNSS

Aldebaran ALD-NS3500S is a rugged, GNSS-aided, high performance Fiber Optic Gyro (FOG) based Inertial Navigation System. The device incorporates High end three axis accelerometers, three axis fiber-optic gyroscopes, and an integrated multi-constellation GNSS receiver. The sensors are characterized and calibrated in Aeron's state-of-the-art facility. Aeron's proprietary parameter estimation engine delivers fast alignment and tactical class navigation performance in a matter of minutes.

The ALD-NS3500S model has a multi-frequency (L1/L2/L5), multi-constellation GNSS receiver with multi tracked channels and best in class signal sensitivity. The ALD-NS3500S model has a multi-frequency (L1/L2/L5), multi constellation GNSS receiver, including IRNSS and best in class signal sensitivity.

The Aldebaran series INS offers superior pure-inertial performance in short-term GNSS outages. External air data/velocity and position aiding can also be provided to the system.

ALD-NS3500S is suitable for positioning and pointing in airborne, land & naval applications. Aldebaran combines top-of-the-range tactical sensors closed-loop 0.1°/hr. (BI) fiber-optic gyros and <1 mg (long-term bias) accelerometers to deliver dependable GNSS denied performance in rough, off-road, and bumpy terrain.

The gyros hold their bias under vibrations, and Aeron’s proprietary sensor fusion algorithms deliver superior navigation and position performance. Aldebaran INS has integrated L1/L2/L5 GNSS receivers supporting multiple constellations that include GPS, GALILEO, and NAVIC.
