Compact MEMS-based heading and tilt sensors for robotics, industrial automation, and precision navigation.
Compact Sensors for Heading & Tilt
Aeron's Motion Sensors family covers two distinct measurement needs on a single, compact MEMS platform: the GALILEO GLO-DMC300 digital magnetic compass for magnetic heading, and the VEGA TSW-G tilt switch with gyroscope for roll and pitch angle sensing. Both combine MEMS sensing with onboard signal processing to deliver stable, calibrated data over standard RS232 or RS485 interfaces.
Whichever measurement your system needs — heading for navigation and orientation, or tilt and inclination for stabilization and safety — each sensor ships factory-configured, is field-calibratable, and integrates directly into an external controller or PLC without a bulky navigation-grade system.
How Aeron Motion Sensors Work
GLO-DMC300 and VEGA TSW-G measure different things — heading versus tilt — but both follow the same MEMS-sensing-to-digital-output architecture.
Engineered for Reliable Motion Sensing
Six core capabilities shared across Aeron's Motion Sensors family.
Choose Your Sensor
Galileo GLO-DMC300
GLO-DMC300
A reliable, low-power digital magnetic compass that fuses a triaxial MEMS accelerometer and magnetometer to deliver tilt-compensated heading, roll and pitch — ideal for compassing, surveying, and direction-sensing applications.
GLO-DMC300 & VEGA TSW-G · Motion Sensors
Choose Your Sensor
Galileo GLO-DMC300
Digital magnetic compass for land & marine heading.
A reliable, low-power digital magnetic compass that fuses a triaxial MEMS accelerometer and magnetometer to deliver tilt-compensated heading, roll and pitch — ideal for compassing, surveying, and direction-sensing applications.
Heading Accuracy
±1° (1σ)
Roll & Pitch Accuracy
±0.5° (1σ)
Output Rate
1 / 10 / 20 Hz
Interfaces
RS232 / RS485
Compare Aeron's Motion Sensors
GLO-DMC300 and VEGA TSW-G — every spec, side by side.
| Measurement | ||
Roll Range | ±180° | ±180° |
Pitch Range | ±60° | ±60° (full accuracy range) |
Output Rate | 1 / 10 / 20 Hz | 1 / 10 / 20 Hz |
| Interfaces | ||
Protocol | RS232 ASCII or RS485 ASCII/RTU | ASCII, MODBUS RTU |
| Environmental | ||
Operating Temperature | −10°C to +70°C | −40°C to +71°C |
Sealing | IP50 | IP67 |
| Explore & enquire | View Product | View Product |
Why Choose Aeron
Aeron designs and manufactures every motion sensor in-house, from MEMS sensor selection through onboard filtering and calibration. Both GLO-DMC300 and VEGA TSW-G ship with a bundled desktop configuration utility, are built for continuous field operation, and are backed by Aeron's in-house engineering and support.
Where Our Motion Sensors Deliver
Field-proven heading and tilt sensing across navigation, industrial, and land-system platforms.
Unmanned Vehicle Navigation
GLO-DMC300 delivers reliable heading data for autonomous ground and aerial platforms.

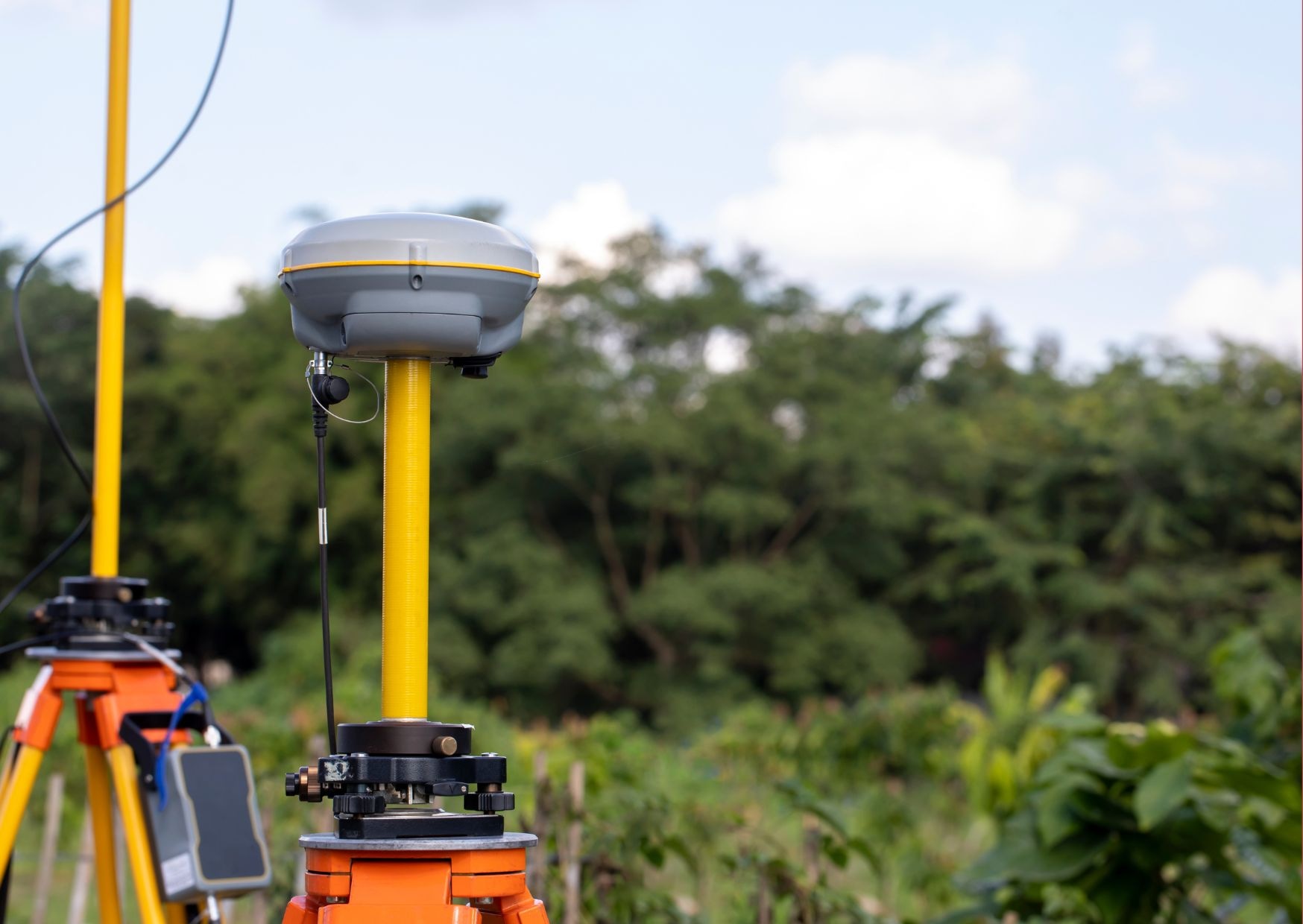

Surveying & Antenna Orientation
High-accuracy heading supports mapping, surveying, and antenna-pointing tasks.
Industrial & Land Systems
VEGA TSW-G brings reliable tilt sensing and relay switching to heavy equipment and land platforms.
Our Values
Factory & Field Calibration
Every sensor ships factory-calibrated and stays field-recalibratable through the desktop utility.
Simple Integration
Standard RS232/RS485 interfaces drop straight into an existing controller or PLC.
Built to Last
Compact metal enclosures and wide operating temperature ranges suit demanding field conditions.
