Vega TSW-G
Motion Sensors
Dual-Axis Industrial Tilt Switch with Gyroscope
- Roll Range±180°
- Pitch Range±60°
- Max Update Rate20Hz
- Shock Survival20g

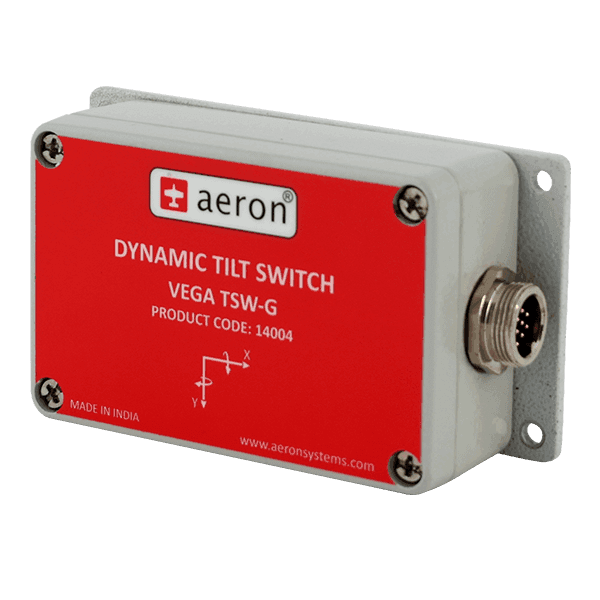

Vega TSW-G
Vega TSW-G is an industrial tilt switch that estimates roll and pitch from MEMS accelerometers and a tri-axial gyroscope, for angle measurement in vibrating or dynamic conditions. Two integrated relays switch when a user-configured threshold angle is exceeded. It updates at up to 20 Hz, is sealed to IP67 and suits cranes, dumper trucks, scissor lifts and heavy equipment.
How Vega-TSW-G Processes Sensor Data
Accelerometer and gyroscope data are fused through an on-board statistical filtering engine to estimate roll and pitch, driving both the serial output and the relay switching logic.
In
Out
- ACCELEROMETERMEMS · Gravity-Level Sensing
- GYROSCOPETri-Axial · Dynamic Angle Sensing
- SERIAL OUTPUTRS232/RS485 · ASCII, MODBUS RTU
- RELAY SWITCHING2× Configurable Threshold Relays
Built for Harsh Industrial Environments
Gyro Compensated
An onboard gyroscope and Kalman filtering keep angle output accurate even in highly dynamic, off-road conditions.
Redundant Sensor
Redundant MEMS sensing improves reliability for demanding automotive and safety-critical applications.
Health Indication
Onboard diagnostics report device health through a dedicated digital switch output.
Water & Environment Proof
An IP67-tested enclosure protects the sensor in extreme outdoor and industrial operating conditions.
Reliable Design
Field-proven across more than 10,000 deployed units, with a consistently low failure rate.
Interfaces
Digital RS232 and RS485 outputs carry X and Y angle data directly into an external controller.
Technical Specifications
Performance
| Roll Range | ±180° |
|---|---|
| Pitch Range | ±60°Full accuracy range |
| Resolution | 0.01° |
| Accuracy | ±0.5° (1σ) static, ±1° (1σ) dynamicCalibrated @ 25°C, temp. characteristics ±0.05°/°C |
| Update Rate | 1 / 10 / 20 HzConfigurable |
Interfaces
| Serial | RS232, RS485Either port active at a time |
|---|---|
| Protocols | ASCII, MODBUS RTU |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 |
| Relay Output | 2 |
Relay
| Roll Switching Limit | ±90°Configurable |
|---|---|
| Pitch Switching Limit | ±60°Configurable |
| Switching Voltage | 220 VDC, 250 VAC |
| Switching Current | 2 A |
Environmental Compliant
| Shock Survival | 20 g |
|---|---|
| Environmental Sealing | IP67 |
| Operating Temperature | −40°C to +71°C |
Mechanical
| Size | 117 (L) × 64 (W) × 39 (H) mm |
|---|---|
| Weight | 500 g |
| Casing Material | Aluminum |
Electrical
| Power Supply | +9 V to +32 VDC |
|---|---|
| Power Consumption | 180 mA@ 12 VDC |
Accuracy calibrated @ 25°C, temperature characteristics ±0.05°/°C. Either RS232 or RS485 port is active at a time.
Applications
Angle and Tilt Sensing
Solar Tracking
Robotics- Dumper Inclination Measurement
Motion Sensing
Platform Stabilization & Leveling
ATM Machines, Man-Lift Safety
Safe Load Indicators, Crane Boom Angle Indicators
Questions
Common questions about the Vega-TSW-G Tilt Switch with Gyroscope.
What is the measurement range of the Vega-TSW-G?
Roll is measured up to ±180° and pitch up to ±60° (full accuracy range), both at 0.01° resolution.
Does it support relay switching outputs?
Yes — 2 integrated relays with independently configurable roll (±90°) and pitch (±60°) switching limits, rated up to 250 VAC / 220 VDC at 2 A.
What communication protocols are supported?
ASCII and MODBUS RTU over RS232 or RS485 (only one serial port is active at a time), at baud rates from 9600 to 115200.
Is the Vega-TSW-G suitable for harsh environments?
Yes — it is IP67 sealed in an aluminum casing, rated for 20 g shock survival, and factory calibrated across −40°C to +71°C.
What is the update rate?
The output update rate is configurable at 1 Hz, 10 Hz or 20 Hz.
