Class A sensor designed to IEC 61724-1:2021 — RS485 Modbus RTU output, IP65-rated stainless steel body, -40°C to 125°C measurement range.
Product Features
Six pillars that define ALT-TH110's precision and reliability
IEC 61724-1:2021 Class A
Conforms to the most stringent Class A accuracy standard for environmental sensors — guaranteeing repeatable, reliable measurements in every deployment.
High-Precision Measurements
Temperature uncertainty of just ±0.2°C (max) and humidity uncertainty of 1% RH with 0.01 resolution on both parameters.
RS485 Modbus RTU Output
Industry-standard digital output for seamless integration with SCADA, BMS, HVAC, weather stations, and industrial automation systems.
IP65 Rugged SS Construction
SS304/SS316 housing with a porous sintered stainless steel filter withstands harsh environments and guarantees long operational life.
Indoor & Outdoor Ready
Deploy directly indoors without accessories or use the optional UV radiation shield (ordered separately) for full outdoor installations.
Multi-Parameter in One Probe
A single integrated probe simultaneously measures both air temperature and relative humidity — reducing wiring, cost, and installation complexity.
Built to Work Together

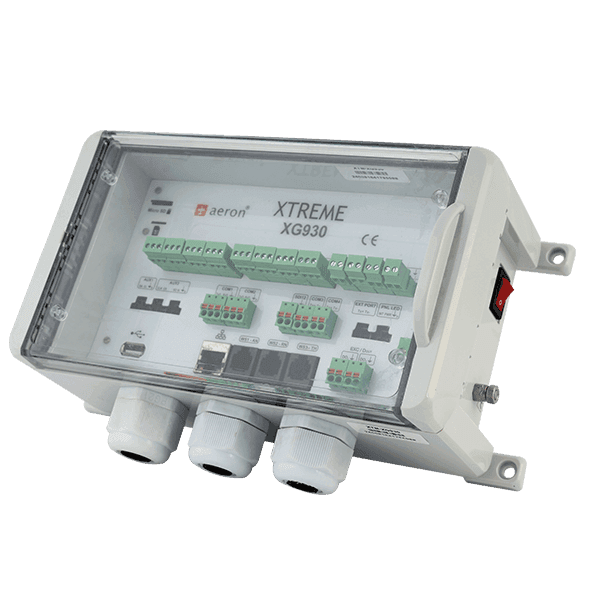

The Altair ATRH sensor, Rigel 2 module sensor, and XTREME data logger form one bankable monitoring chain — from field to cloud.

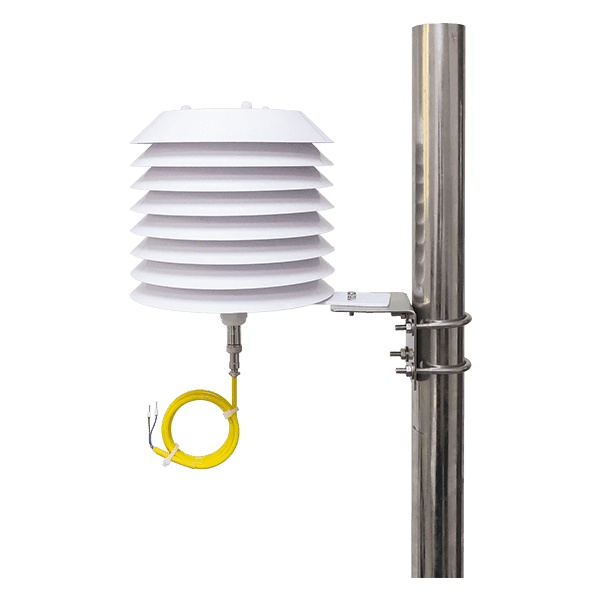

Altair ATRH
Technical Specifications
ALT-TH110 · IEC 61724-1:2021 Class A
Measurement Range
-40°C to 125°C
Measurement Uncertainty
±0.2°C (max)
Resolution
0.01°C
Applications
Engineered for demanding real-world deployments across diverse industries

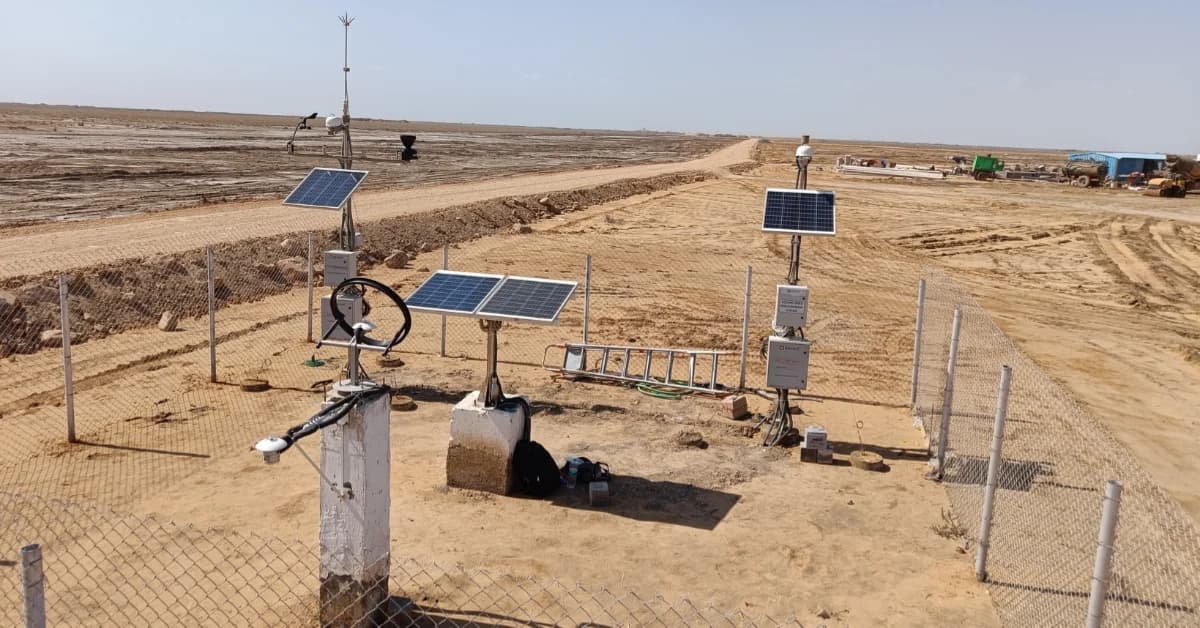

Renewable & Meteorological Stations
Precise ambient condition monitoring for solar, wind, and environmental data acquisition systems.
Cold Chain Vehicle Monitoring
Continuous temperature and humidity tracking across refrigerated transport and logistics fleets.
HVAC Systems
Accurate ambient data for intelligent climate control, energy optimization, and occupant comfort.
Air Quality Monitoring
Integrated environmental sensing for indoor and outdoor air quality stations and monitoring networks.
Ordering Information
One model, complete environmental monitoring solution
