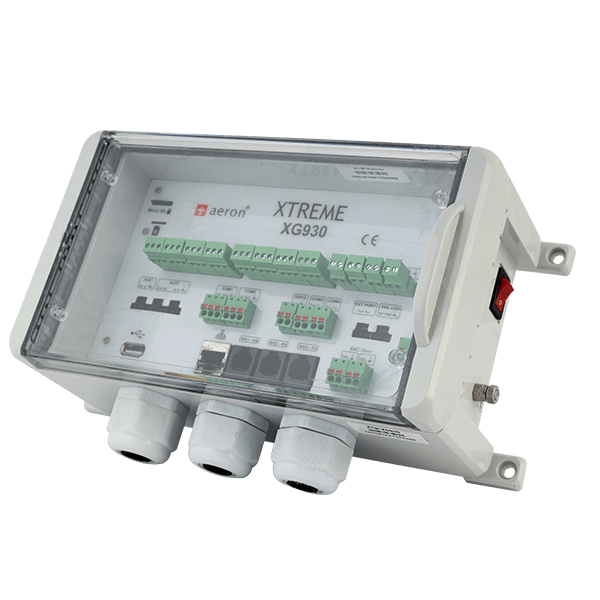

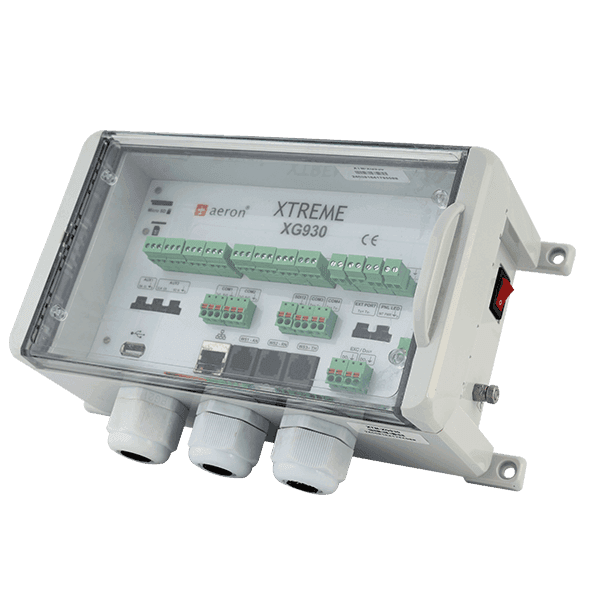

A robust family of smart data loggers capturing measurements from diverse sensors via analog and digital interfaces. Powered by a 32-bit 900 MHz processor and 24-bit ADC with edge computing for AI-based IIoT applications.
Built to Work Together
The Altair ATRH sensor, Rigel 2 module sensor, and XTREME data logger form one bankable monitoring chain — from field to cloud.
XTREME™
Engineered for Industrial Precision
Every capability purpose-built to deliver reliable, accurate data acquisition in the harshest field conditions.
Technical Specifications
XTM XG920 (8 analog channels · Product Code: 24008) | XTM XG930 (16 analog channels · Product Code: 24009)
Channels — XTM XG920
4 differential or 8 single-ended
Channels — XTM XG930
8 differential or 16 single-ended
Input Range
0–5 V · 0–1 V · 0–100 mV · 0–20 mA · 80–200 Ω (PT100) · 800–2,000 Ω (PT1000)
Resolution
24-bit
Accuracy at 30 °C
±0.01 % of Full Scale
Accuracy (full range)
±0.03 % of Full Scale
Built for Every Field Condition
From solar farms to industrial plants, XTREME delivers certified performance across the most demanding monitoring environments.
Solar WMS
Simultaneous acquisition from GHI/POA pyranometers, module temperature, ambient T+RH, wind, and soiling sensors — IEC 61724-1:2021 Class A certified.

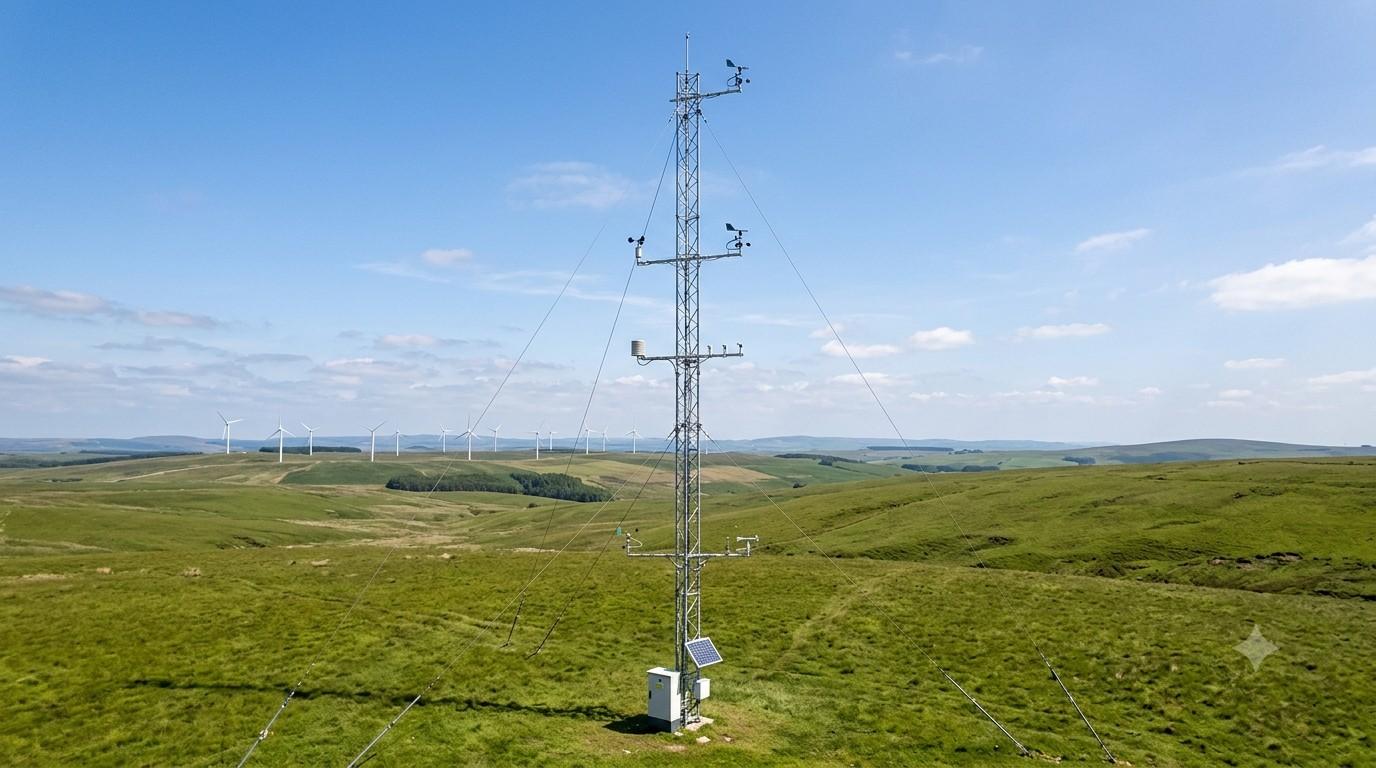

Wind Metmast
Compliant with IEC 61400-12-1:2022 for wind resource assessment — simultaneous wind profiling, atmospheric pressure, temperature, and anemometer inputs.
Environment Monitoring
Multi-sensor air quality and meteorological logging with OPC particle sensors, PM2.5/PM10, and meteorological parameters — high-resolution 1 Hz sampling.
Energy Management
Modbus TCP and IEC 60870-5-104 integration with energy meters, inverters, and SCADA — real-time performance tracking and alarm management.
Process Monitoring
RS485, RS232, SDI12 serial interfaces and 4G LTE cloud connectivity bring any industrial process into a live IIoT monitoring platform.
Every Interface, One Device
Data Where You Need It
Live3
24×7 cloud data storage with real-time visualisation, automated alerts, and scheduled PDF reports. Access from any device, from anywhere in the world.
DALI
DALI is Aeron's browser-based software for configuring and monitoring the XTREME Smart Data Logger — accessible from any device on the network, no install required.
Activity Log
Every login and setting change is timestamped and audited, so you always know who changed what, when.
All-Protocol Acquisition, One Box
SDI-12, Modbus RTU (RS-485 & RS-232, master and slave), Modbus TCP, and analog channels — collected side-by-side.
Live Data & Live Charts
Real-time table and trend charts refreshing every second straight from the sensors, no cloud round-trip.
On-Device Calculated Parameters
Derive soiling ratio, total solar radiation, and custom maths at the edge, logged like any other channel.
Multi-Cloud Store-and-Forward
Pushes to Aeron Cloud, your own HTTP/MQTT server, and FTP/SFTP at once; buffers locally and back-fills when the link drops.
Flexible Networking & Time Sync
LAN, Wi-Fi, or built-in hotspot (DHCP or static), kept aligned by GPS or NTP.
See how XTREME leads the field
XTREME Smart Data Logger against ACE DLG80 and ACE DLG88L — every spec, side by side.
| Core Performance | |||
ADC Resolution XTREME achieves >20 Effective Number of Bits | 24-bit | Best 24-bit (>20 ENOB) | 12-bit Sigma-Delta |
ADC Accuracy | ±0.1% FS | Best ±0.01% FS at 30 °C ±0.03% FS (full range) | ±0.1% FS |
Simultaneous Parameters | — | Best 1,000 | 176 |
Min. Logging Interval | 1 minute | Best 1 second | 1 minute |
| Inputs & Interfaces | |||
Analog Channels | 8 SE / 4 Differential | Best XG920: 8 SE / 4 Diff XG930: 16 SE / 8 Diff | Davis & Aeron sensor suite |
Signal Input Types | 0–500 mV · 0–1 V 4–20 mA · PT100 · PT1000 | 0–100 mV · 0–5 V 0–20 mA · PT100 · PT1000 | Aeron / Davis compatible |
Digital I/O | — | Best 4 DI · 2 DO · 1 kHz | — |
Serial Interfaces | 2× RS485 Modbus RTU (Master + Slave) · RS232 | 2× RS232 · 3× RS485 SDI-12 | RS485 Modbus RTU SDI-12 |
Modbus Role | Master & Slave | Best 2 Master & 1 Slave | — |
| Connectivity | |||
Wireless Network | 4G LTE | Best 4G LTE · Wi-Fi Bluetooth | 4G LTE |
Wired Network | — | Best Ethernet | — |
Protocols | Modbus RTU LTE cloud | Best Modbus RTU/TCP IEC 60870-5-101/104 SFTP · HTTP/HTTPS | Modbus RTU LTE cloud |
Cloud Analytics DLG80: real-time PR & CUF for solar plants | Best Aeron Live3 (PR & CUF analytics) | Aeron Live3 | Aeron Cloud |
| Storage & Time | |||
Primary Storage | 8 GB micro-SD | Best 8 GB internal + 8 GB SD (exp. 32 GB) | 8 GB micro-SD (up to 32 GB) |
Data Capacity | 5+ years | 5+ years | 5+ years |
Data Retrieval | USB pen drive | Best USB · Web (local & remote) | USB to laptop |
Time Synchronisation | GPS | Best GPS · NTP · Cellular · Manual | Network server (sync on connect) |
| Power & Physical | |||
Power Supply DLG88L: solar-ready with onboard battery backup | 9–28 V DC | 9–28 V DC (<10 W) | Best 9–28 V DC + Li-ion 5200 mAh + 20 W solar |
IP Rating | IP65 | IP65 | IP65 |
Operating Temperature | — | Best −40 °C to +70 °C | −20 °C to +70 °C |
Housing | PC/ABS UV-resistant | PC UV-protected | ABS UV-protected |
Dimensions (mm) | 170 × 125 × 67.5 | 231 × 125 × 90 | 125 × 170 × 66.5 |
On-board Display | — | — | Best LCD 128×64 3-button keypad |
| Standards & Application | |||
IEC Standard XTREME also covers wind resource assessment | IEC 61724-1:2021 Class A | Best IEC 61724-1:2021 + IEC 61400-12-1:2022 | — |
CE Compliance | EN 61326-1:2021 | EN 61326-1:2013 | — |
Primary Application | C&I Solar Plants Agrivoltaic monitoring | Solar · Wind · Environment Industrial IIoT | Agriculture Meteorology |
Product Code(s) | 23009 | 24008 / 24009 | 23005 – 23008 |
| Explore & enquire | View Product | View Product | View Product |
Choose Your Configuration
Same precision platform — select the channel count that fits your application.
