Aldebaran FOG INS-GNSS

Inertial Navigation Systems

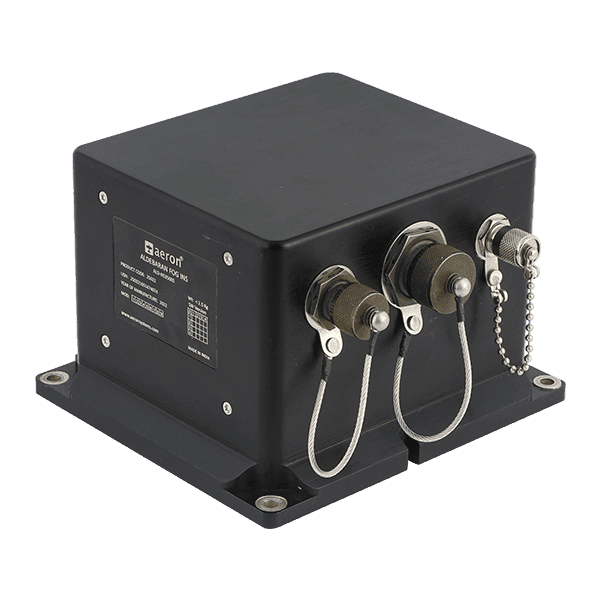

Aldebaran ALD-NS3500S FOG Inertial Navigation System

Superior tactical Fibre-Optic Gyro based Inertial Navigation System

Request a quote Download DatasheetHelp me choose
  • Gyro Bias Instability< 0.1°/hr
  • RTK Horizontal Accuracy< 0.8cm
  • Power Consumption< 12W
  • Update Rate100Hz

Find your fit

Answer one question to see which navigation systems fit your platform.

What platform are you deploying on?

Your match: Octantis 2 INS-GNSS and Aldebaran FOG INS-GNSS

Aldebaran ALD-NS3500S FOG Inertial Navigation System

Your match

Aldebaran FOG INS-GNSS

Superior tactical Fibre-Optic Gyro based Inertial Navigation System

  • Drift without GNSS0.5% of DT with external odometer
  • Gyro bias instability0.1°/hr
  • Weight< 2.5 ± 0.05 kg

This is the product on show

Octantis 2 INS-GNSS

Your match

Octantis 2 INS-GNSS

Rugged High Reliability Inertial Navigation System for Land and Unmanned Applications

  • Gyro bias instability<1 °/hr (typical)
  • Heading accuracy<0.3° RMS with GNSS in dynamic conditions
  • Weight<1.1 kg
View product

Aldebaran FOG INS-GNSS

Aldebaran ALD-NS3500S is a rugged, tactical-grade Fiber Optic Gyro (FOG) based Inertial Navigation System with an integrated multi-frequency, multi-constellation GNSS receiver, delivering dependable position, velocity and attitude data across airborne, land and naval platforms.

How Aldebaran Processes Sensor Data

Sensor inputs are fused in real time through Aeron's proprietary Extended Kalman Filter to deliver stable navigation, attitude and heading estimates.

In

Out

  • FIBRE-OPTIC GYROTriaxial · <0.1°/hr BI
  • ACCELEROMETERTriaxial · 15 μg BI
  • GNSS RECEIVER445-ch · L1/L2/L5 + IRNSS
  • EXTERNAL AIDINGOdometer · CAN · Air Data
NAVPRO EKF ENGINEGNSS-InertialSensor Fusion
  • NAVIGATION SOLUTIONPosition · Velocity · Time
  • ATTITUDE & HEADINGEuler Angles · 0.01° Res.
  • DIAGNOSTICSContinuous BIT (CBIT)

Product Features

Field-proven inertial and GNSS engineering built for tactical navigation.

  • High Reliability System

    MIL-qualified INS-GNSS system for tactical performance in high vibration environments.

  • Closed-Loop FOG & Tactical MEMS

    Excellent IMU performance under vibration with closed-loop fibre-optic gyroscopes and high-performance accelerometers at <15 μg bias instability.

  • GNSS-Denied Performance

    Suitable for land navigation in GNSS-compromised scenarios, delivering 0.5% distance-travelled drift even in long-term GNSS outages with external aiding.

  • Odometer & External Aiding

    Accepts ground speed aiding over CAN and wheel-pulse odometer, plus external position, speed, and heading alignment inputs.

  • Isolated Interfaces & Power Supply

    Protects device electronics from electromagnetic interference and transients on power and data lines.

  • Communication

    Wide array of isolated interfaces and protocols, including Binary and NMEA over serial RS422 and RS232.

  • Device Diagnostics

    Complete and continuous built-in test (CBIT) to monitor and report system and sensor health parameters.

  • External Aiding

    Accepts external position, speed, and heading aiding input from a master or external reference system.

  • NavPro Sensor Fusion Algorithm

    Aeron's proprietary EKF-based sensor fusion engine delivers exceptional performance in GNSS-denied conditions.

Technical Specifications

Aldebaran FOG INS-GNSS

Qualification

Power SupplyMIL-STD-704D, MIL-STD-1275E
EMI / EMCMIL-STD-461E
Environmental TestsMIL-STD-810G
Design StandardJSS-55555
IP ProtectionIP65
Humidity10% to 90% RH (non-condensing)
Operating Temperature-40 to +71°C
Storage Temperature-55 to +85°C

GNSS / GPS

Type445 channel, L1/L2/L5 Code/Carrier phase GPS, GLONASS, QZSS, BEIDOU and IRNSS/NavIC
Diff. Correction TypeRTCMv2, RTCMv3, CMRv2 (for RTK mode)
Reacquisition Time1 sec
TTFF Cold Start45 sec
ConnectorTNC female socket

Communication

Update Rate100 Hz (navigation data), 200 Hz (raw measurement)
InterfacesRS232 (CH1), RS232 (CH2), RS422 x 2, 1PPS
Data FormatNMEA / Binary
External InputsExternal GNSS feed, external magnetometer feed, external airspeed feed, external position and speed input, odometer input
Output ParametersEuler angles (yaw, pitch, roll), quaternion, position, velocity, acceleration, angular rate and time

Accelerometer

Range±10 g
Bias Instability15 μg
Bias Repeatability1.2 mg
Raw Bandwidth>1 kHz

Angular Rate

Range±450°/s
Bias Instability0.1°/hr
ARW<0.012°/√hr
Raw Bandwidth>1 kHz

Attitude

Roll Range±180°
Pitch Range±90°
Roll, Pitch Resolution0.01°
Roll, Pitch Accuracy±0.05° (2σ) Static

Position Accuracy

Horizontal Position<0.8 cm with RTK, 1.5 m with GNSS, 1 m with SBAS, 0.5% of DT with external odometer
Vertical Position<2 cm with RTK, 2.5 m (1σ) with GNSS, 1.5 m (1σ) with SBAS, 2 m (1σ) relative with barometer
Velocity0.05 m/s RMS with GNSS in dynamic condition

Heading

Heading Range±180°
Heading Accuracy0.5° RMS with calibrated magnetometer, 0.3° RMS with GNSS in dynamic conditions
Angle Resolution0.01°

Barometer

Range300 – 1100 hPa
Accuracy±1 hPa

Electrical

Input Voltage12 – 32 V DC
Power Consumption< 12 W

Mechanical

Size172.4 mm (L) × 155 mm (W) × 114 mm (H)
Weight< 2.5 ± 0.05 kg

Position accuracy specified for open-sky conditions (RMS levels, baseline < 40 km); RTK mode requires differential corrections from an RTK base station.

Heading accuracy is quoted after magnetic calibration for hard-iron / soft-iron disturbances and setting the correct declination / offset angle.

Other Product Details

Model NumberALD-NS3500S
ComplianceMIL-STD-704D · MIL-STD-1275E · MIL-STD-461E · MIL-STD-810G · JSS-55555 Compliant

Applications

  • Marine NavigationMarine Navigation
  • Armored Vehicle NavigationArmored Vehicle Navigation
  • Autonomous Vehicle NavigationAutonomous Vehicle Navigation
  • Mapping and SurveyingMapping and Surveying

Related Resources

Questions

Common questions about the Aldebaran FOG-INS.

Which GNSS constellations are supported?

It supports GPS, GLONASS, Galileo, BeiDou, QZSS, and NavIC.

What type of gyroscopes are used in Aldebaran?

The system uses closed-loop Fibre Optic Gyroscopes with 0.1°/hr bias instability.

What communication interfaces are available?

Aldebaran supports RS232, RS422, NMEA, and Binary protocols.

What is the heading accuracy of Aldebaran INS?

The system provides heading accuracy of up to 0.3° RMS in dynamic GNSS conditions.

Is Aldebaran qualified for military applications?

Yes, it complies with MIL-STD environmental, EMC, and power supply standards.
