Precision Motion Sensors

Compact MEMS-based heading and tilt sensors for robotics, industrial automation, and precision navigation.

Compact Sensors for Heading & Tilt

Aeron's Motion Sensors family covers two distinct measurement needs on a single, compact MEMS platform: the GALILEO GLO-DMC300 digital magnetic compass for magnetic heading, and the Vega TSW-G tilt switch with gyroscope for roll and pitch angle sensing. Both combine MEMS sensing with onboard signal processing to deliver stable, calibrated data over standard RS232 or RS485 interfaces.

Whichever measurement your system needs — heading for navigation and orientation, or tilt and inclination for stabilization and safety — each sensor ships factory-configured, is field-calibratable, and integrates directly into an external controller or PLC without a bulky navigation-grade system.

How Aeron Motion Sensors Work

GLO-DMC300 and Vega TSW-G measure different things — heading versus tilt — but both follow the same MEMS-sensing-to-digital-output architecture.

Out

MEMS AccelerometerShared across both sensors
Magnetometer or GyroscopeHeading (GLO-DMC300) or dynamic angle (Vega TSW-G)

Onboard Signal ProcessorFiltering & Calibration Engine

Heading, Roll & PitchDigital serial output
Relay SwitchingConfigurable threshold output (Vega TSW-G)

Engineered for Reliable Motion Sensing

Six core capabilities shared across Aeron's Motion Sensors family.

Precision MEMS Sensing
Every Aeron motion sensor pairs a MEMS accelerometer with a second sensing element — magnetometer or gyroscope — for accurate, repeatable output.
Digital RS232 / RS485 Interfaces
Standard serial interfaces integrate directly into an external controller, PLC, or data logger.
Configurable Output Rates
Update rates of 1, 10 or 20 Hz are user-configurable across the family to match the application.
Low Power Design
Both sensors are designed for low current draw, suited to battery- or bus-powered installations.
Compact, Rugged Enclosures
Compact metal enclosures are built to survive factory, automotive, and outdoor environments.
Bundled Configuration Software
A desktop utility handles configuration, calibration, and live data display for both sensors.

Choose your sensor

GLO-DMC300 & Vega TSW-G · Motion Sensors

Choose your sensorGalileo DMC300Vega TSW-G

MEMS · Heading Sensor · GLO-DMC300

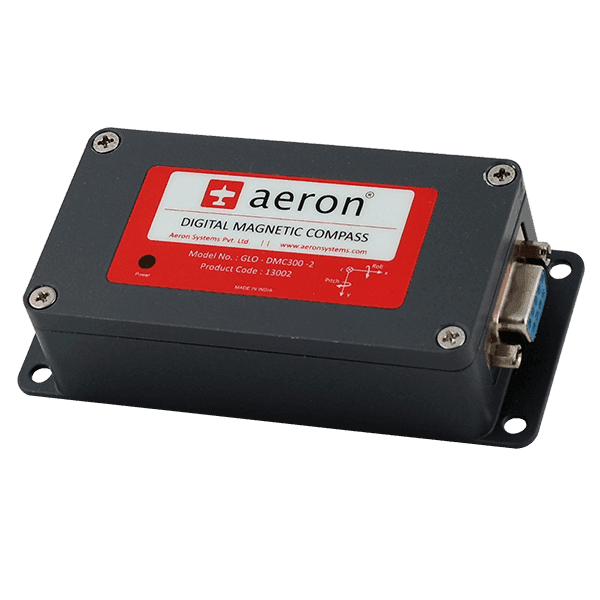

Galileo DMC300

Digital magnetic compass for land & marine heading.

A reliable, low-power digital magnetic compass that fuses a triaxial MEMS accelerometer and magnetometer to deliver tilt-compensated heading, roll and pitch — ideal for compassing, surveying, and direction-sensing applications.

Heading Accuracy	±1° (1σ)
Roll & Pitch Accuracy	±0.5° (1σ)
Output Rate	1 / 10 / 20 Hz
Interfaces	RS232 / RS485
Power Supply	+9 to +28 V DC
Sealing	IP50

Applications

Unmanned Vehicle Navigation
Robot Navigation
Marine Navigation
Antenna Orientation
Surveying

View product

MEMS + Gyro · Tilt Switch · Vega-TSW-G

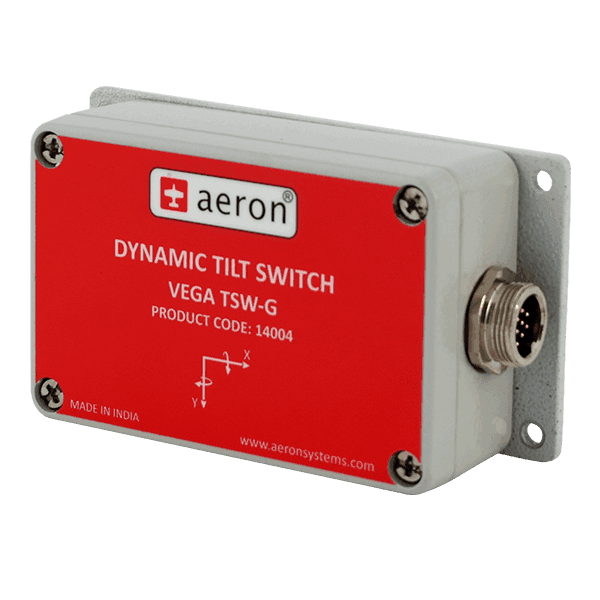

Vega TSW-G

Dual-axis tilt switch with integrated relay outputs.

An industrial-grade tilt switch with gyroscope that combines MEMS accelerometers with a tri-axial gyroscope and onboard statistical filtering, delivering accurate roll and pitch data plus configurable relay switching — even in vibrating or dynamic environments.

Roll Range	±180°
Pitch Range	±60°
Accuracy	±0.5° static / ±1° dynamic
Update Rate	1 / 10 / 20 Hz
Relay Outputs	2, configurable threshold
Sealing	IP67

Applications

Angle and Tilt Sensing
Solar Tracking
Robotics
Dumper Inclination Measurement
Motion Sensing
Platform Stabilization & Leveling
ATM Machines, Man-Lift Safety
Safe Load Indicators, Crane Boom Angle Indicators

View product

Compare Aeron's Motion Sensors

GLO-DMC300 and Vega TSW-G — every spec, side by side.

Measurement
	Galileo DMC300Galileo Digital Magnetic Compass	Vega TSW-GVega Tilt Switch
Show full specification sheetShow only the differences
Heading Range	±180°	—
Heading Accuracy	±1° (1σ)	—
Roll Range	±180°	±180°
Pitch Range	±60°	±60° (full accuracy range)
Roll & Pitch Accuracy	±0.5° (1σ)	±0.5° (1σ) static, ±1° (1σ) dynamic
Resolution	0.01°	0.01°
Output Rate	1 / 10 / 20 Hz	1 / 10 / 20 Hz
Sensing
Magnetometer Range	±2 gauss	—
Gyroscope	—	Tri-axial
Electrical
Power Supply	+9 to +28 V DC	+9 V to +32 VDC
Current Consumption	< 150 mA @ 12 V DC	180 mA @ 12 VDC
Interfaces
Protocol	RS232 ASCII or RS485 ASCII/RTU	ASCII, MODBUS RTU
Serial Ports	RS232, RS485	RS232, RS485 (one active at a time)
Baud Rate	9600–115200	9600–115200
Relay Output	—	2, configurable threshold
Environmental
Operating Temperature	−10°C to +70°C	−40°C to +71°C
Sealing	IP50	IP67
Shock Survival	—	20 g
Mechanical
Dimensions	106.7 × 47.6 × 27.5 mm	117 × 64 × 39 mm
Weight	180 ± 25 g	500 g

Why Choose Aeron

Aeron designs and manufactures every motion sensor in-house, from MEMS sensor selection through onboard filtering and calibration. Both GLO-DMC300 and Vega TSW-G ship with a bundled desktop configuration utility, are built for continuous field operation, and are backed by Aeron's in-house engineering and support.

Where Our Motion Sensors Deliver

Field-proven heading and tilt sensing across navigation, industrial, and land-system platforms.

Unmanned Vehicle Navigation
GLO-DMC300 delivers reliable heading data for autonomous ground and aerial platforms.
Surveying & Antenna Orientation
High-accuracy heading supports mapping, surveying, and antenna-pointing tasks.
Industrial & Land Systems
Vega TSW-G brings reliable tilt sensing and relay switching to heavy equipment and land platforms.
