FLINT WDG85
Wireless IoT data gateway
- ADC Resolution12-bit±0.1 % of full scale
- Analog Inputs20–10 V · 4–20 mA
- SD Storage8GBExpandable to 32 GB
- Data Retention5+ Yr4G LTE · GPS sync

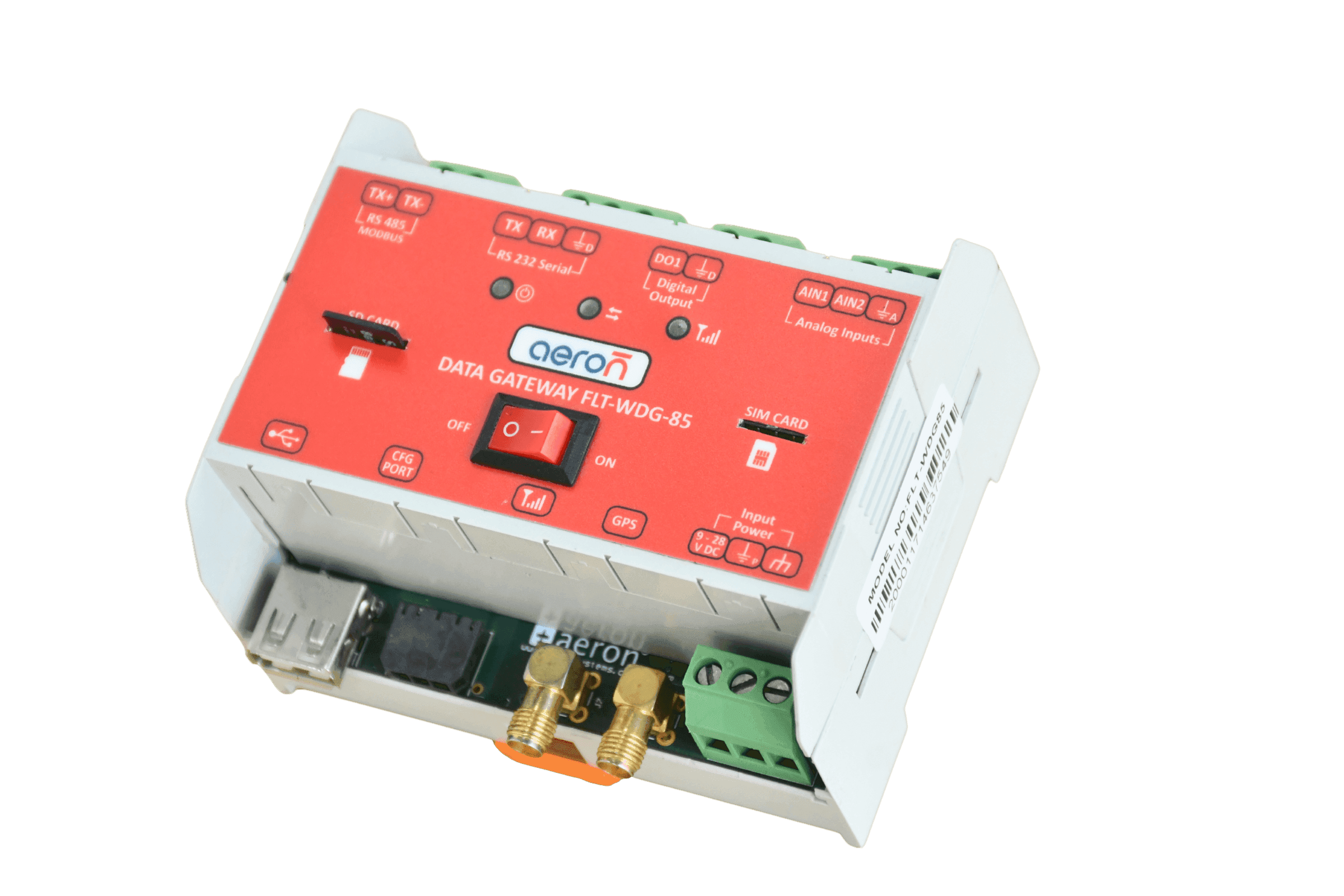

FLINT WDG85
Compact wireless IoT gateway — RS485 Modbus RTU, 4G LTE, GPS sync, and 5-year onboard storage in a DIN-rail package.
Everything you need to bridge the industrial edge.
Six built-in capabilities — no extra hardware, no middleware, no compromises.
Easy Integration
Connect PLCs, SCADA, sensors and energy meters through standard RS485 and RS232 interfaces — no additional middleware required.
Multiple Interfaces
RS232 and RS485 Modbus RTU ensure plug-and-play compatibility with virtually any external industrial device or sensor in the field.
4G LTE Communication
Quad-Band GSM/LTE modem pushes data to any web server or cloud platform from wherever there is cellular coverage — no local network needed.
Dual Analog Inputs
2 analog inputs (0–10 V / 4–20 mA), 1 digital output, and serial ports give comprehensive signal coverage in a single compact unit.
5-Year SD Storage
8 GB micro SD card logs over five years of data in .csv format. Expandable to 32 GB — data survives every network outage.
GPS Time Sync
Synchronises on every network connection via GPS and server time, ensuring precise timestamps across all logged parameters.
Technical Specifications
Communication
| Network | Quad-Band GSM, LTE |
|---|---|
| Network Type | 2G, 3G & 4G |
| FDD LTE | B1 / B3 |
| TDD LTE | B38 / B39 / B40 / B41 |
| GSM | 900 / 1800 MHz |
| Time Sync | GPS, Server |
| Max Output Power | 30 dBm |
| Rx Sensitivity | -110 dBm |
| Interface | RS485 MODBUS RTU | RS232 MODBUS RTU | USB Mass Storage |
Analog Input
| Channels | 2 × Single-ended |
|---|---|
| Voltage Range | 0 – 10 V |
| Current Range | 4 – 20 mA |
| Sampling Rate | 1 Hz |
| ADC Resolution | 12-bit |
| Accuracy | ±0.1 % of full scale |
Microcontroller
| Architecture | 32-bit |
|---|---|
| Frequency | 100 MHz |
| LED Indicators | Power · Network Health · Communication |
| Digital Output | 1 × |
Mechanical
| Operating Temperature | -10 °C to +70 °C |
|---|---|
| Storage Temperature | -20 °C to +80 °C |
| Dimensions | 90 × 75 × 54 mm |
| Weight | < 150 g |
Electrical
| Voltage Input | +9 to +28 V DC |
|---|---|
| Operating Current | < 150 mA |
| Reverse Protection | Up to 28 V |
Storage
| Internal Memory | 4 MB |
|---|---|
| SD Card | 8 GB (expandable to 32 GB) |
| Data Format | .csv |
Built for the field. Ready for any industry.
From factory automation to remote water systems — FLINT WDG85 connects it all over 4G LTE.
Process Automation
Connect your factory floor to the cloud. Bridge RS485 PLCs, SCADA, and control systems to live dashboards — without replacing existing infrastructure or running new cabling.
Industrial IoT
Turn legacy equipment into smart assets. 4G LTE eliminates the need for factory Wi-Fi or Ethernet runs. Any machine with an RS485 port becomes instantly cloud-connected.
Remote Utilities
Monitor remote sites, anywhere. Send readings from remote installations over cellular, and store years of data locally for compliance reporting.
Cold Chain
Zero tolerance for temperature excursions. Continuous temperature and humidity logging with SMS alerts. SD card backup ensures no data loss during connectivity outages.
Built-in connectivity, right out of the box.
RS485 (MODBUS RTU)
Industry-standard serial bus for PLCs, sensors, energy meters, and industrial devices.
RS232 (MODBUS RTU)
Legacy serial interface for direct connection to older industrial equipment and terminals.
4G LTE (Quad-Band GSM)
FDD LTE B1/B3 · TDD B38/B39/B40/B41 — full cellular bands for global deployment.
GPS (Time Sync)
GPS and server-based sync ensures accurate timestamps for every single data record.
Analog In (0–10V · 4–20mA)
2 single-ended channels · 12-bit ADC · 1 Hz · ±0.1% full-scale accuracy.
USB (Mass Storage)
USB port for local data retrieval and firmware updates without network access.
Access your data, anywhere.
Web Portal
Remote access · any browser. Live data monitoring and historical download from anywhere via Aeron's secure web portal.
Desktop Application
Windows · full config control. Configure collection intervals, set thresholds, and retrieve logged data with graphical visualisation.
Android Application
Field data viewing on mobile. On-site data viewing for field engineers. Available exclusively for Aeron Web Services customers.
FLT-WDG85
Contact our IoT specialists for pricing, bulk orders, custom configurations, or a demo unit. Same-week dispatch available.
| Model | FLT-WDG85 |
|---|---|
| Product Code | 20003 |
| Network | 4G LTE / 3G / 2G |
| Interface | RS485 · RS232 · USB |
| Analog Input | 2ch · 0–10V · 4–20mA |
| ADC | 12-bit · 1 Hz · ±0.1% |
| Digital Output | 1 × |
| Storage | 8 GB SD (→ 32 GB) |
| Power | +9 to +28 V DC |
| Origin | Made in India |
